Efficient TPS Testing: Unleashing Your Multimeter’s Power for Automotive Diagnostics

In the intricate world of automotive mechanics, precision is paramount. Diagnosing and resolving engine performance issues often hinges on the accurate assessment of sensors, actuators, and the complex interplay between them. Among these vital components, the Throttle Position Sensor (TPS) stands out as a crucial element in managing engine operation. This article delves into the realm of efficient TPS testing, exploring how your multimeter, a seemingly simple tool, can unlock its full potential and empower you with the ability to pinpoint TPS-related problems quickly and effectively. We’ll explore the ‘multimeter’s power‘ in this context.

Understanding the Throttle Position Sensor (TPS)

Before diving into the testing procedures, it’s essential to grasp the fundamental role of the TPS. The TPS is, in essence, a potentiometer. It’s mounted on the throttle body and monitors the throttle plate’s position, relaying this information to the engine control unit (ECU). The ECU, in turn, uses this data to determine the appropriate fuel delivery and ignition timing, ensuring optimal engine performance across various driving conditions. A malfunctioning TPS can lead to a range of issues, including poor acceleration, rough idling, stalling, and decreased fuel efficiency.

The Significance of Efficient TPS Testing

The ability to conduct efficient TPS testing is a valuable skill for any automotive technician or enthusiast. Accurate and timely diagnostics can save valuable time and resources. It prevents unnecessary component replacements and facilitates targeted repairs. This proactive approach minimizes downtime, reduces the risk of cascading failures, and ultimately enhances customer satisfaction. The multimeter’s power here is its ability to provide quick, accurate readings.

Essential Tools for TPS Testing

The primary tool for efficient TPS testing is, of course, your multimeter. However, a few additional tools and supplies can streamline the process and ensure accuracy. These include:

A digital multimeter (DMM) with voltage and resistance measurement capabilities.
A wiring diagram for the specific vehicle you’re working on.
Test leads and probes.
A small screwdriver for disconnecting connectors.
A set of safety glasses.

Step-by-Step Guide to Efficient TPS Testing with a Multimeter

The process of efficient TPS testing with a multimeter generally involves the following steps. Always refer to the vehicle’s service manual for specific instructions and wiring diagrams, as procedures may vary depending on the make and model.

Preparing for the Test

1. Safety First: Disconnect the negative battery terminal to prevent accidental shorts and ensure your safety.

2. Locate the TPS: Identify the location of the TPS on the throttle body. Consult your vehicle’s service manual or wiring diagram if needed.

3. Access the Connector: Disconnect the TPS connector. This might involve releasing a locking tab or clip. Be gentle to avoid damaging the connector.

Voltage Testing

Voltage testing is a crucial step in efficient TPS testing. It verifies the power supply and signal output of the sensor. Here’s how to proceed:

1. Power Supply Check: With the ignition key in the ‘ON’ position (engine off), use your multimeter to measure the voltage between the TPS power supply wire (usually a wire connected to the positive side) and a good ground. You should read a voltage within the manufacturer’s specified range (typically 5V or 12V, depending on the system). If the voltage is outside the specified range, investigate the power supply circuit.

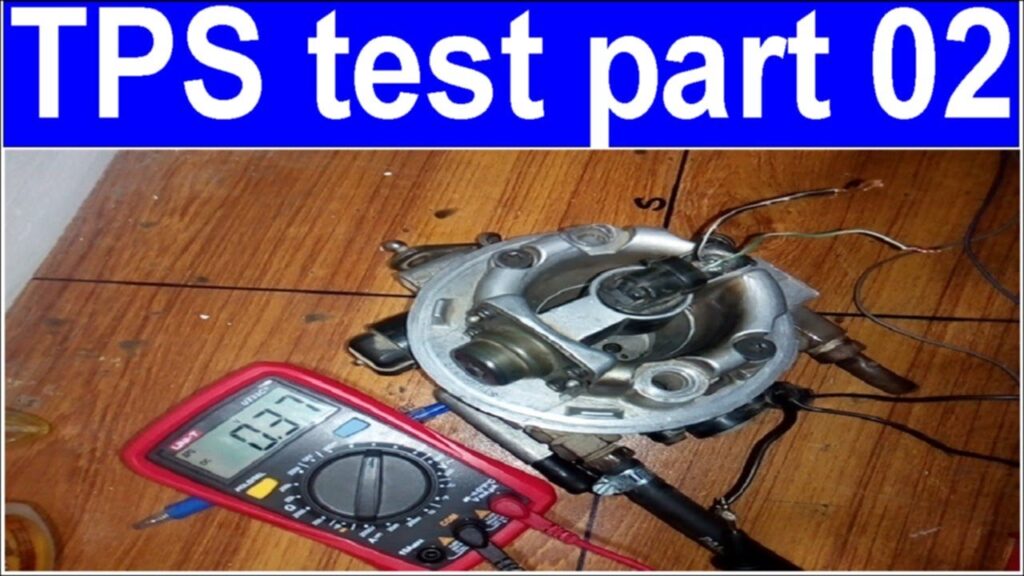

2. Signal Voltage Check: Connect the positive probe of your multimeter to the TPS signal wire and the negative probe to a good ground. Slowly open the throttle plate while observing the voltage reading on the multimeter. The voltage should increase smoothly and proportionally as the throttle plate opens. There should be no sudden jumps or dropouts in the voltage reading. If there is, the TPS is faulty or there is a wiring issue. This highlights the multimeter’s power in providing real-time data.

Resistance Testing

Resistance testing provides valuable insights into the internal workings of the TPS. This is another key aspect of efficient TPS testing. Here’s what to do:

1. Resistance Measurement: With the TPS connector disconnected, set your multimeter to the ohms (Ω) setting. Connect the multimeter probes to the appropriate terminals on the TPS. Refer to the wiring diagram for the correct pin assignments.

2. Smooth Transition: Slowly open and close the throttle plate while observing the resistance reading. The resistance should change smoothly and consistently without any dead spots or erratic fluctuations. A faulty TPS will often exhibit these characteristics.

3. Baseline Resistance: Note the resistance reading at the closed throttle position and the fully open throttle position. Compare these readings to the manufacturer’s specifications. Significant deviations indicate a problem with the TPS.

Interpreting the Results of TPS Testing

The data gathered from your efficient TPS testing will guide you in diagnosing the problem. Here’s how to interpret the results:

Incorrect Voltage Readings: Indicate issues with the power supply circuit or a short circuit within the wiring.
Erratic Signal Voltage: Suggests a faulty TPS or a problem with the wiring harness.
Dead Spots or Jumps in Resistance Readings: Point to a worn or damaged TPS.
Out-of-Range Readings: Indicate a faulty TPS or a misadjusted sensor.

Troubleshooting Common TPS Issues

Once you’ve identified a problem through efficient TPS testing, you can begin troubleshooting. Here are some common issues and their potential solutions:

No Voltage to the TPS: Check fuses, relays, and wiring for breaks or shorts.
Erratic Signal Voltage: Replace the TPS, inspect the wiring harness, and check for loose connections.
High or Low Voltage Readings: Adjust the TPS if adjustable, or replace it if necessary.
Engine Stalling or Hesitation: Check the TPS, and also consider issues with the fuel system, ignition system, or the ECU itself.

Advanced Techniques and Considerations for Efficient TPS Testing

Beyond the basic voltage and resistance checks, there are several advanced techniques that can enhance your efficient TPS testing. These include:

Using a Scan Tool: A scan tool can provide real-time data from the TPS, allowing you to monitor the sensor’s performance while the engine is running. This can help identify intermittent issues that might not be apparent during static testing.
Checking the TPS Ground: A poor ground connection can cause inaccurate readings. Use your multimeter to check the resistance between the TPS ground wire and the vehicle’s chassis.
Inspecting the Wiring Harness: Carefully inspect the wiring harness for any signs of damage, such as cracked insulation, corroded terminals, or loose connections.

The Importance of Accuracy and Precision

The accuracy of your efficient TPS testing directly impacts the quality of your diagnosis and the effectiveness of your repairs. Always double-check your connections, verify your readings, and consult the vehicle’s service manual for the most accurate specifications. The multimeter’s power is only as good as the user’s skill and attention to detail.

Beyond the Multimeter: Complementary Diagnostic Tools

While the multimeter is the cornerstone of efficient TPS testing, other diagnostic tools can be helpful in certain situations:

Oscilloscope: An oscilloscope can provide a visual representation of the TPS signal, allowing you to identify subtle anomalies that might not be detectable with a multimeter.
Scan Tool: As mentioned earlier, a scan tool can provide real-time data and allow you to monitor the TPS’s performance in conjunction with other engine parameters.

The Role of the Multimeter in a Broader Context

The skills you acquire through efficient TPS testing extend far beyond this specific sensor. Mastering the use of a multimeter is fundamental to diagnosing a wide range of automotive electrical issues. This includes testing other sensors, actuators, wiring harnesses, and electronic control units. The multimeter’s power lies in its versatility and its ability to provide fundamental data.

Conclusion: Embracing the Power of Your Multimeter

Efficient TPS testing is a critical skill for any automotive technician. By understanding the TPS’s function, employing the proper testing procedures, and interpreting the results accurately, you can effectively diagnose and resolve engine performance issues. Your multimeter is a powerful tool in this process. It’s a gateway to unlocking a deeper understanding of automotive electronics and improving your diagnostic capabilities. Embrace the multimeter’s power and elevate your automotive repair skills. The ability to conduct efficient TPS testing is a testament to the power of methodical diagnostics and the effectiveness of your multimeter.
