DIY Car Maintenance: A Step-by-Step Guide to Checking Your Ignition Control Module

The hum of the engine, the satisfying purr as you accelerate – these are the sounds that define the driving experience. But what happens when that familiar symphony is disrupted by sputtering, stalling, or a complete failure to start? Often, the culprit lies within the complex network of your car’s electrical system, and a key component to investigate is the Ignition Control Module (ICM). This article dives deep into DIY Car Maintenance: Ignition Control Module Check, providing you with the knowledge and tools to diagnose and potentially resolve issues yourself, saving you time and money. This is not just about fixing your car; it’s about understanding it.

The Ignition Control Module is a critical component in the ignition system. It’s responsible for precisely timing the spark that ignites the air-fuel mixture in your engine’s cylinders, enabling the engine to run smoothly. Without a functioning ICM, your car will likely experience starting difficulties, misfires, or even complete engine failure. Fortunately, a DIY Car Maintenance: Ignition Control Module Check is often within the capabilities of a moderately skilled home mechanic. Before you rush to the mechanic, consider performing this check yourself. It’s a valuable skill to possess and can save you a significant amount of money.

Understanding the Ignition Control Module

Before you embark on a DIY Car Maintenance: Ignition Control Module Check, it’s essential to grasp what the ICM does. The ICM receives signals from the crankshaft position sensor (CKP) and the camshaft position sensor (CMP), among other sensors. Based on these signals, the ICM determines the precise moment to send a high-voltage pulse to the ignition coil. This pulse creates the spark that ignites the fuel-air mixture within the combustion chamber, generating power. The timing of this spark is crucial; even a slight deviation can lead to poor engine performance, reduced fuel efficiency, and increased emissions. The ICM is essentially the conductor of the ignition orchestra.

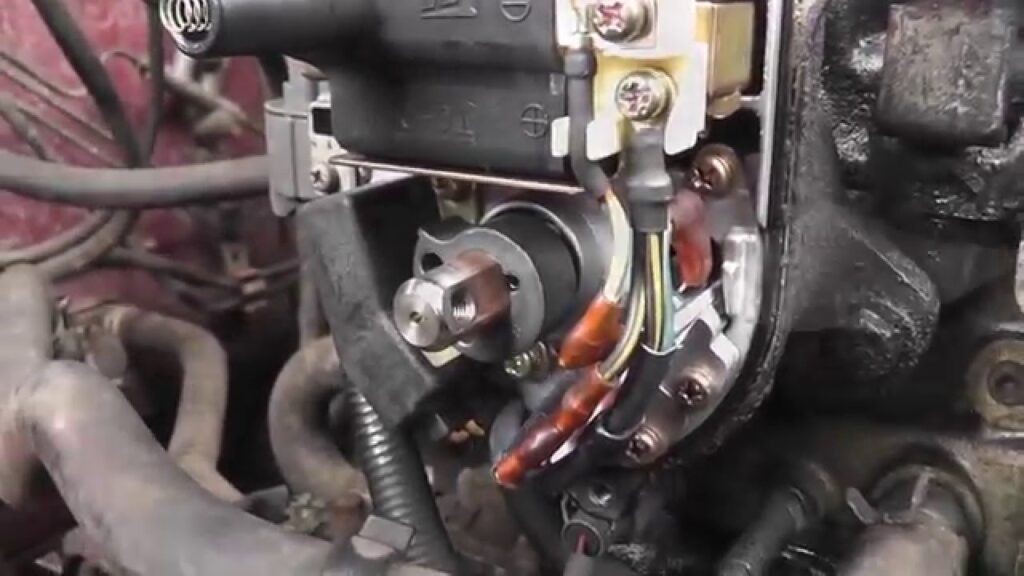

The ICM itself is typically a small, rectangular box, often located near the distributor (in older vehicles) or integrated into the ignition coil assembly (in newer vehicles). Its position can vary depending on the make and model of your car, so consulting your vehicle’s repair manual is always the best first step. The ICM is a robust component, but it can fail due to heat, vibration, or electrical issues. A failing ICM can manifest in a variety of ways, each pointing towards the need for a DIY Car Maintenance: Ignition Control Module Check.

Common Symptoms of a Failing Ignition Control Module

Recognizing the symptoms of a failing ICM is the first step in diagnosing the problem and determining the need for a DIY Car Maintenance: Ignition Control Module Check. These symptoms can be subtle or dramatic, but they all indicate a potential issue within your ignition system. Here are the most common signs:

Difficulty Starting: The engine may crank but fail to start, or it may take multiple attempts to get the engine running. This is often the first and most obvious sign.
Misfiring: The engine may run rough, with a noticeable lack of power, hesitation, or sputtering. You might also feel the engine shaking or experience a loss of acceleration.
Stalling: The engine may stall unexpectedly, especially at idle or low speeds. This can be a dangerous situation if it happens while driving.
Reduced Fuel Efficiency: A faulty ICM can disrupt the engine’s timing, leading to inefficient fuel combustion and reduced fuel economy.
Complete Engine Failure: In severe cases, the ICM can fail completely, rendering the engine unable to start at all.

If you experience any of these symptoms, a DIY Car Maintenance: Ignition Control Module Check is a logical next step in diagnosing the problem. Remember that these symptoms can also be caused by other issues within the ignition system, such as a faulty ignition coil, spark plugs, or wiring problems. This is why a systematic approach to diagnosis is crucial.

Tools and Materials You’ll Need

Before you begin your DIY Car Maintenance: Ignition Control Module Check, gather the necessary tools and materials. Having everything on hand will make the process smoother and more efficient. Here’s a list of what you’ll likely need:

Your Vehicle’s Repair Manual: This is essential for locating the ICM and understanding the specific procedures for your car.
Multimeter: A multimeter is used to test for voltage, resistance, and continuity, all of which are critical when diagnosing electrical problems.
Screwdrivers: A set of screwdrivers, including Phillips and flathead, is necessary for removing components.
Wrench Set: You may need a wrench set to remove bolts or other fasteners.
Gloves and Safety Glasses: Safety is paramount. Protect your hands and eyes.
Replacement ICM (Optional): If you suspect the ICM is faulty, it’s a good idea to have a replacement on hand. Check the price before you start, and make sure you can return it if the ICM isn’t the problem.
Electrical Connectors and Terminals: These may be needed if you find any damaged wiring.
Wire Strippers and Crimpers: For working with electrical wiring.

Make sure you have all of these items before you begin your DIY Car Maintenance: Ignition Control Module Check. Preparing yourself is key.

Step-by-Step Guide to Checking Your Ignition Control Module

Now, let’s get down to the heart of the matter: the DIY Car Maintenance: Ignition Control Module Check. Follow these steps carefully, and remember to consult your vehicle’s repair manual for specific instructions related to your car model. The precise location of the ICM and the testing procedures may vary.

Safety First: Disconnect the negative battery cable to prevent any electrical shorts. Wear safety glasses and gloves.
Locate the ICM: Consult your vehicle’s repair manual to find the ICM’s location. It’s typically near the distributor or integrated into the ignition coil assembly.
Visual Inspection: Carefully inspect the ICM and its wiring for any signs of damage, such as cracks, corrosion, or loose connections. Look for any burnt or melted plastic, which could indicate an electrical problem.
Check the Wiring Harness: Disconnect the wiring harness from the ICM. Inspect the terminals for corrosion or damage. Use a wire brush to clean any corrosion.
Resistance Test (Using a Multimeter): This is a crucial step in your DIY Car Maintenance: Ignition Control Module Check. Consult your repair manual for the specific resistance values for your ICM. Use your multimeter to measure the resistance between the terminals on the ICM. If the resistance is outside of the specified range, the ICM is likely faulty.
Voltage Test (Using a Multimeter): With the ignition key in the “on” position (but the engine not running), use your multimeter to check for voltage at the ICM’s power supply terminals. Your repair manual will tell you the expected voltage. If the voltage is incorrect, there may be a wiring problem.
Continuity Test (Using a Multimeter): Check the continuity of the wiring harness connected to the ICM. This will help you determine if there are any breaks in the wires.
Reassemble and Test Drive: If you performed any repairs, reassemble the components, reconnect the battery cable, and start the engine. Test drive the vehicle to see if the problem is resolved.

This step-by-step guide provides a comprehensive overview of the DIY Car Maintenance: Ignition Control Module Check. Remember to always prioritize safety and consult your vehicle’s repair manual for specific instructions.

Troubleshooting and Additional Tips

Even with a thorough DIY Car Maintenance: Ignition Control Module Check, you may encounter challenges. Here are some troubleshooting tips and additional considerations:

Check the Basics First: Before you suspect the ICM, check the spark plugs, ignition coil, distributor cap (if applicable), and rotor button. These components can cause similar symptoms.
Inspect the Crankshaft Position Sensor (CKP) and Camshaft Position Sensor (CMP): These sensors provide critical information to the ICM. A faulty sensor can mimic ICM problems.
Check for Codes: Use an OBD-II scanner to check for any diagnostic trouble codes (DTCs) related to the ignition system. These codes can provide valuable clues.
Consider the Environment: Extreme heat or cold can affect the performance of the ICM. If you live in an area with harsh temperatures, consider this factor.
Seek Professional Help if Needed: If you are uncomfortable performing the tests or if the problem persists, don’t hesitate to consult a qualified mechanic.

These tips will assist you in your DIY Car Maintenance: Ignition Control Module Check. Sometimes, seeking professional help is the best option. [See also: Diagnosing Engine Misfires]

Cost and Alternatives

The cost of replacing an ICM can vary depending on the make and model of your car and the quality of the replacement part. However, the cost is often significantly less than paying a mechanic to diagnose and replace the ICM. You can often find replacement ICMs online or at auto parts stores. Performing a DIY Car Maintenance: Ignition Control Module Check can save you money. The alternative to doing this yourself is to take your car to a mechanic. While this is a convenient option, it can be more expensive. The mechanic will charge you for the diagnosis, labor, and parts. [See also: Cost of Car Repairs]

Conclusion: Empowering Yourself Through Car Care

A DIY Car Maintenance: Ignition Control Module Check is a valuable skill for any car owner. By understanding how the ICM works and learning how to diagnose potential problems, you can save money, gain confidence in your abilities, and keep your car running smoothly. This guide provides you with the information and steps necessary to perform this check, empowering you to take control of your car’s maintenance. Remember to always prioritize safety, consult your vehicle’s repair manual, and don’t hesitate to seek professional help if needed. With a little knowledge and effort, you can keep your car on the road and avoid costly repair bills. The journey of car ownership is a rewarding one, and a DIY Car Maintenance: Ignition Control Module Check is a great step towards understanding your vehicle better. You are now better equipped to handle issues with your car’s ignition system.
